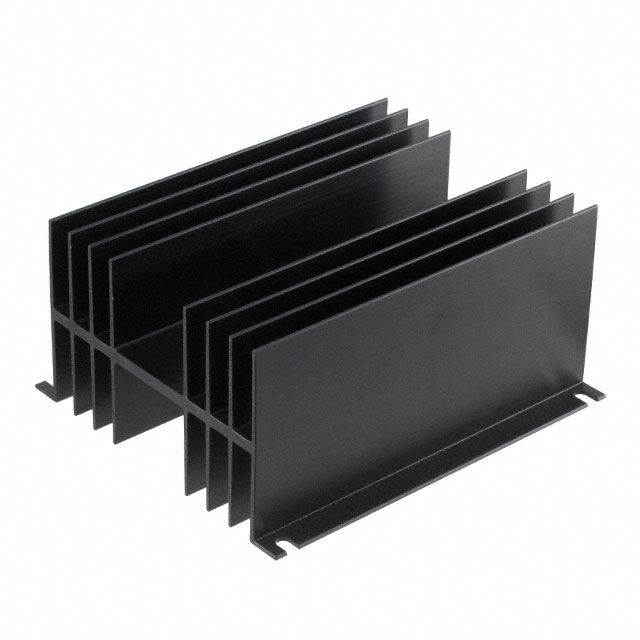

HS05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS05 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 8P TO-3 15W |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $31.445 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS05 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK 8P TO-3 15W | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1247 pcs | Data sheet | HS05 Drawing |
| Category | Fans, Thermal Management | Width | 5.421" (139.70mm) |
| Type | Board Level | Thermal Resistance @ Natural | 0.85°C/W |
| Thermal Resistance @ Forced Air Flow | 0.30°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | 20.0W @ 20°C |
| Package Cooled | TO-3 | Other Names | 1240-1021 HS05-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 4.750" (120.65mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height Off Base (Height of Fin) | 2.630" (66.80mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 20.0W @ 20°C Board Level | Attachment Method | Bolt On |
