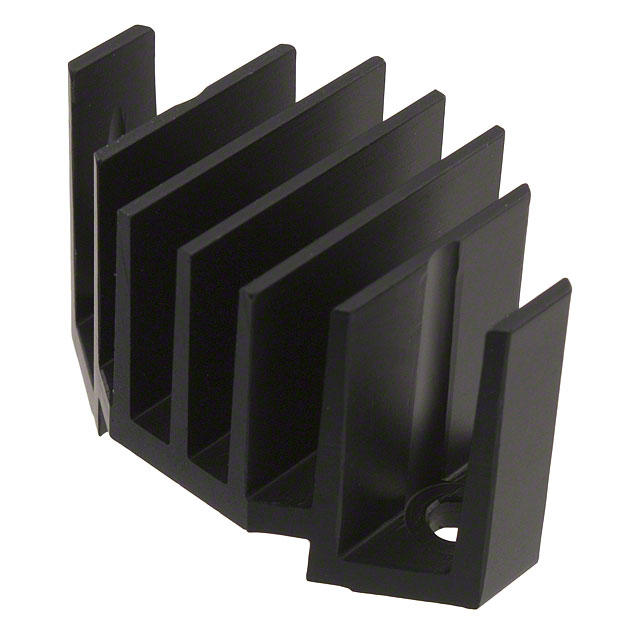

HS01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS01 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK TOP MT TO-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.985 | $8.487 | $7.988 | $7.488 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.989 | $6.49 | $6.365 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS01 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK TOP MT TO-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5544 pcs | Data sheet | HS01 Drawing |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 11.60°C/W |
| Thermal Resistance @ Forced Air Flow | 2.00°C/W @ 600 LFM | Shape | Rhombus |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | 1.5W @ 20°C |
| Package Cooled | TO-3 | Other Names | 598-1367 598-2051 598-2051-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.600" (40.64mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.000" (25.40mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 1.5W @ 20°C Top Mount | Attachment Method | Bolt On |
