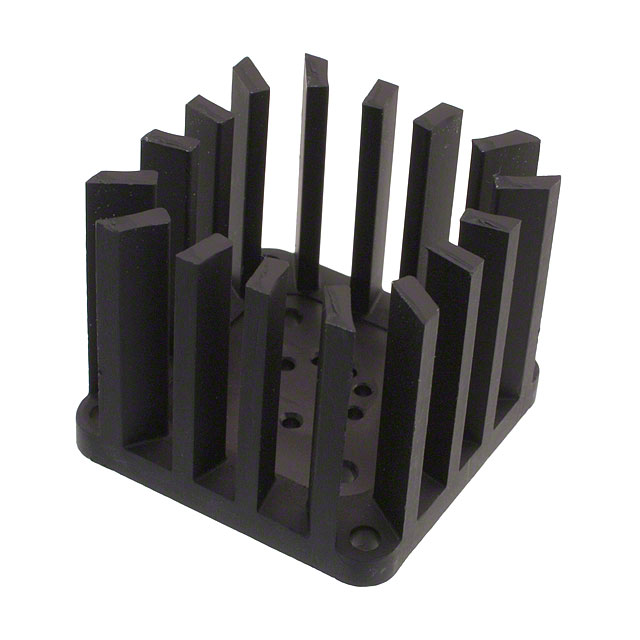

HS02
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS02 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 8P TO-3 4.5C/W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.435 | $9.82 | $9.206 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.593 | $8.286 | $7.825 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS02 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK 8P TO-3 4.5C/W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5001 pcs | Data sheet | HS02 Drawing |
| Category | Fans, Thermal Management | Width | 1.810" (45.97mm) |
| Type | Board Level | Thermal Resistance @ Natural | 4.50°C/W |
| Thermal Resistance @ Forced Air Flow | 2.00°C/W @ 300 LFM | Shape | Square, Pin Fins |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | 10.0W @ 50°C |
| Package Cooled | TO-3 | Other Names | 598-1368 598-2006 598-2006-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 1.810" (45.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 1.500" (38.10mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 10.0W @ 50°C Board Level | Attachment Method | Bolt On |
