HS04

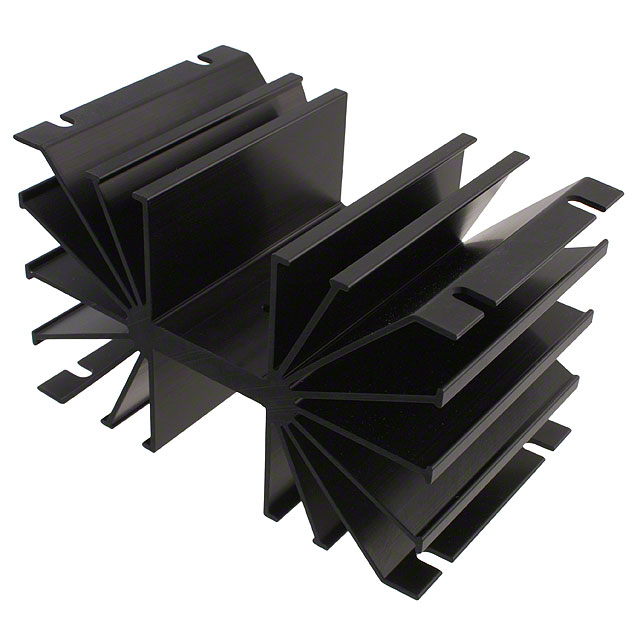

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HS04 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HS04 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HS04 |
|---|---|
| Manufacturer | Apex Microtechnology |
| Description | HEATSINK 8P TO-3 .95C/W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $46.417 | $43.516 | $40.615 | $39.165 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HS04 | Manufacturer | Apex Microtechnology |
|---|---|---|---|
| Description | HEATSINK 8P TO-3 .95C/W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 928 pcs | Data sheet | HS04 Drawing |
| Category | Fans, Thermal Management | Width | 4.750" (120.65mm) |
| Type | Board Level | Thermal Resistance @ Natural | 0.95°C/W |
| Thermal Resistance @ Forced Air Flow | 0.35°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | Apex Precision Power® | Power Dissipation @ Temperature Rise | 50.0W @ 60°C |
| Package Cooled | TO-3 | Other Names | 598-1472 598-2020 598-2020-ND HS04-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 12 Weeks |
| Length | 3.000" (76.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 3.000" (76.20mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 50.0W @ 60°C Board Level | Attachment Method | Bolt On |
