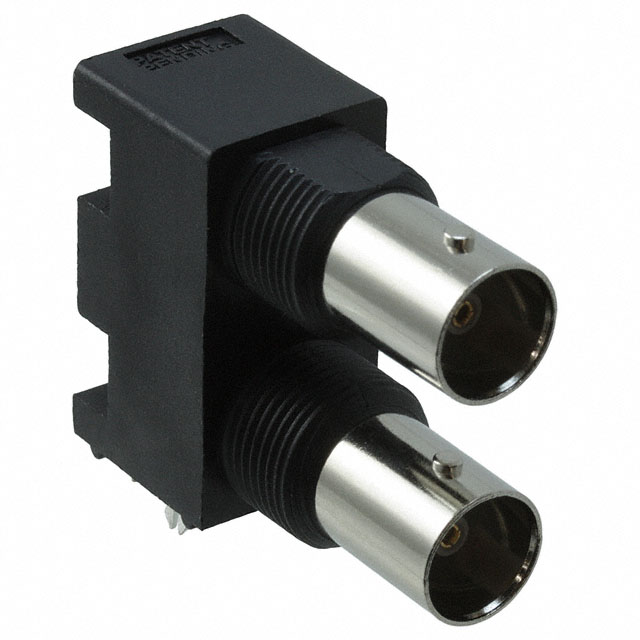

031-70505
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70505 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70505 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70505 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN BNC JACK R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.98 | $3.617 | $3.527 | $3.256 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.075 | $2.803 | $2.623 | $2.406 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70505 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN BNC JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13157 pcs | Data sheet | 031-70505 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | - |
| Packaging | Tray | Other Names | 31-70505 ARF2114 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Black, Silver | Frequency - Max | 1GHz |
| Features | Board Lock, Isolated | Fastening Type | Bayonet Lock |
| Dielectric Material | Polypropylene (PP) | Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Cable Group | - |
| Body Material | - | Body Finish | - |
