031-70339
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70339 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70339 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70339 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |

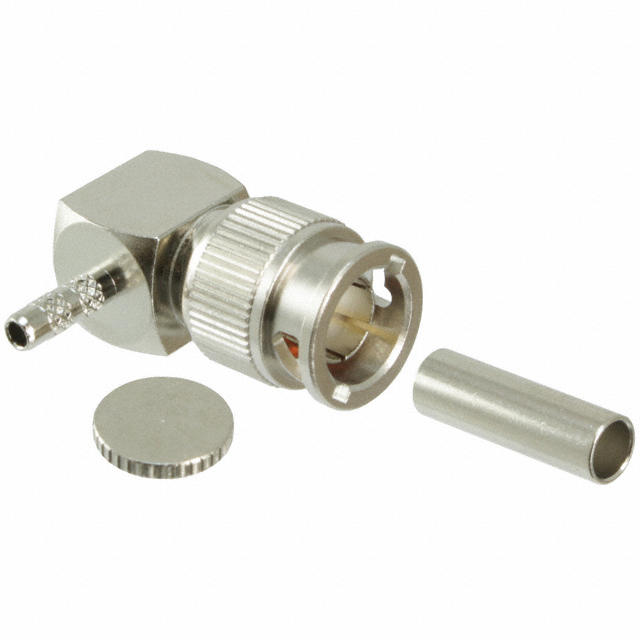

| Description | CONN MINI BNC PLG R/A 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.048 | $3.681 | $3.589 | $3.313 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.129 | $2.853 | $2.669 | $2.448 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70339 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MINI BNC PLG R/A 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12286 pcs | Data sheet | 031-70339 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 31-70339 ARF2135 |
Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.1dB |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 1GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, Mini Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line), Right Angle Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | BNC, Mini |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 | Body Material | Phosphor Bronze |
| Body Finish | Nickel |
