031-70332
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 031-70332 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 031-70332 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 031-70332 |
|---|---|
| Manufacturer | Amphenol Connex (Amphenol RF) |
| Description | CONN MINI BNC JCK STR 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.366 | $4.88 | $4.758 | $4.392 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.148 | $3.782 | $3.538 | $3.245 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 031-70332 | Manufacturer | Amphenol Connex (Amphenol RF) |
|---|---|---|---|
| Description | CONN MINI BNC JCK STR 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10208 pcs | Data sheet | 031-70332 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 31-70332 ARF2143 |
Operating Temperature | -40°C ~ 155°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.1dB |

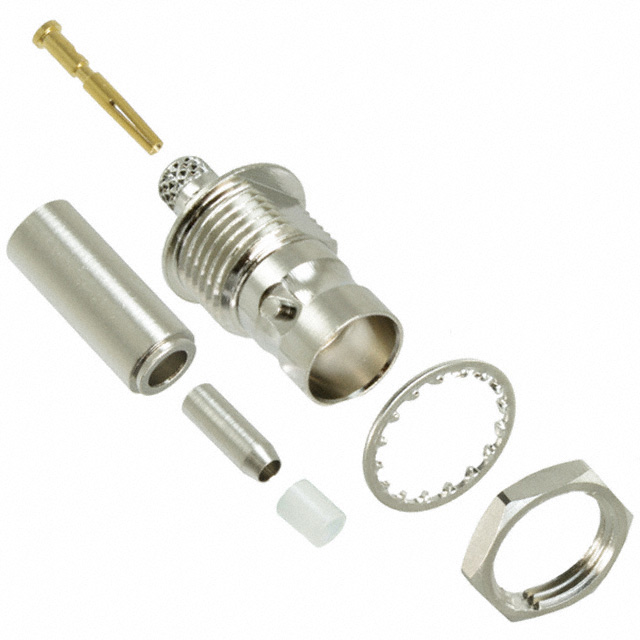

| Ingress Protection | - | Includes | 7 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Sleeve, 1 Spacer |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 1GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, Mini Connector Jack, Female Socket 75 Ohm Panel Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC, Mini |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179 | Body Material | Brass |
| Body Finish | Nickel |
