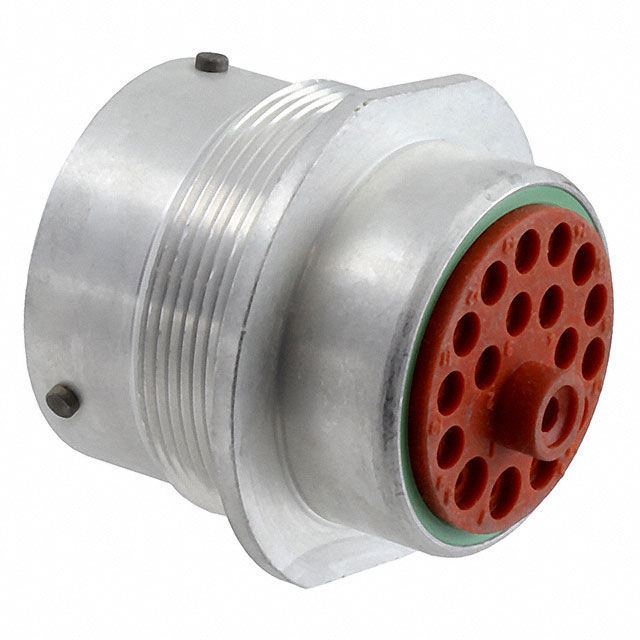

HD34-24-18SN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD34-24-18SN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD34-24-18SN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD34-24-18SN |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG FMALE 18POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.435 | $5.976 | $5.363 | $5.21 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.597 | $4.291 | $4.199 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD34-24-18SN | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG FMALE 18POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7903 pcs | Data sheet | HD30 Series Spec SheetHD34-24-xxP(SX) Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-18 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1283 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 18 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetherimide (PEI) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 18 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 8 (1), 12 (3), 16 (14) | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
