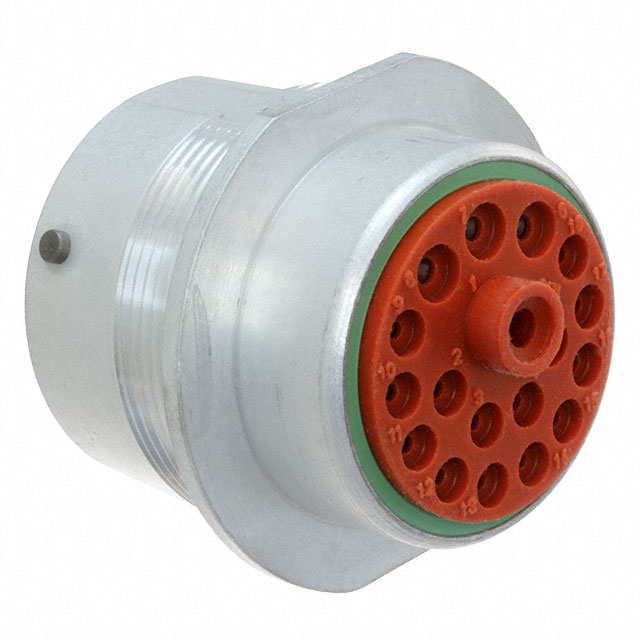

HD34-24-18PN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD34-24-18PN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD34-24-18PN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD34-24-18PN |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSNG MALE 18POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.708 | $5.189 | $5.06 | $4.67 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.411 | $4.022 | $3.762 | $3.451 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD34-24-18PN | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 18POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10340 pcs | Data sheet | HD30 Series Spec SheetHD34-24-xxP(SX) Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-18 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1281 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 18 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetherimide (PEI) |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Silver | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 18 Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | 8 (1), 12 (3), 16 (14) |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
