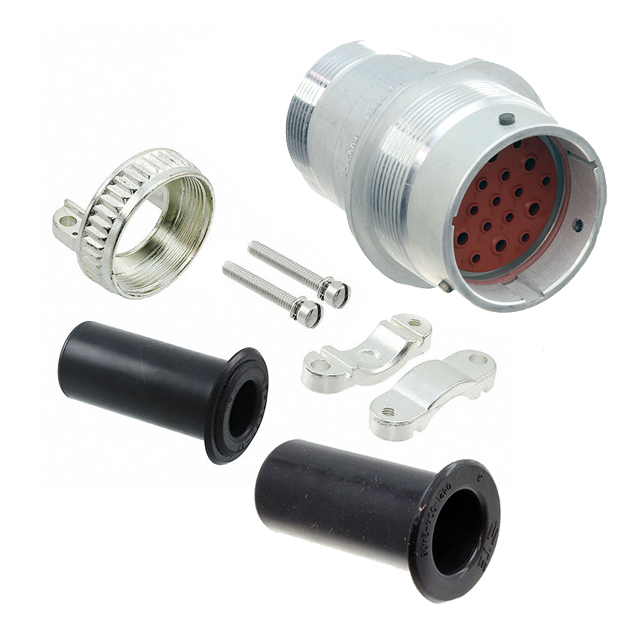

HD34-24-19PN-059
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD34-24-19PN-059 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD34-24-19PN-059 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD34-24-19PN-059 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG MALE 19POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.405 | $7.588 | $7.27 | $6.816 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.589 | $6.225 | $6.043 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD34-24-19PN-059 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG MALE 19POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5877 pcs | Data sheet | HD30 Series Spec SheetHD34-24-xxP(Sx)-059 Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-19 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1778 HD34-24-19PN-059-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 19 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetherimide (PEI) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Backshell, Cable Clamp | Fastening Type | Bayonet Lock |
| Detailed Description | 19 Position Circular Connector Receptacle Housing Panel Mount Backshell, Cable Clamp | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 12 (6), 16 (13) | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
