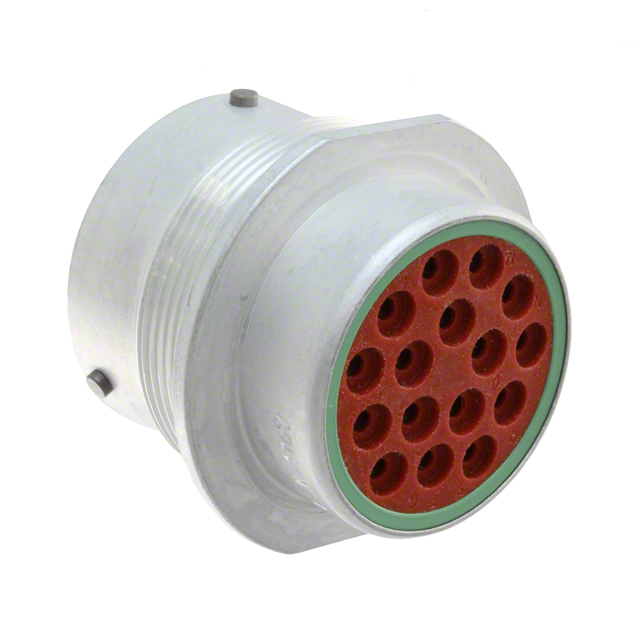

HD34-24-16SN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD34-24-16SN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD34-24-16SN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD34-24-16SN |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG FMALE 16POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.094 | $5.658 | $5.078 | $4.933 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.352 | $4.062 | $3.975 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD34-24-16SN | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG FMALE 16POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9098 pcs | Data sheet | HD30 Series Spec SheetHD34-24-xxP(SX) Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-16 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1280 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 16 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetherimide (PEI) |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Silver | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 16 Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | 12 |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
