8-324159-1

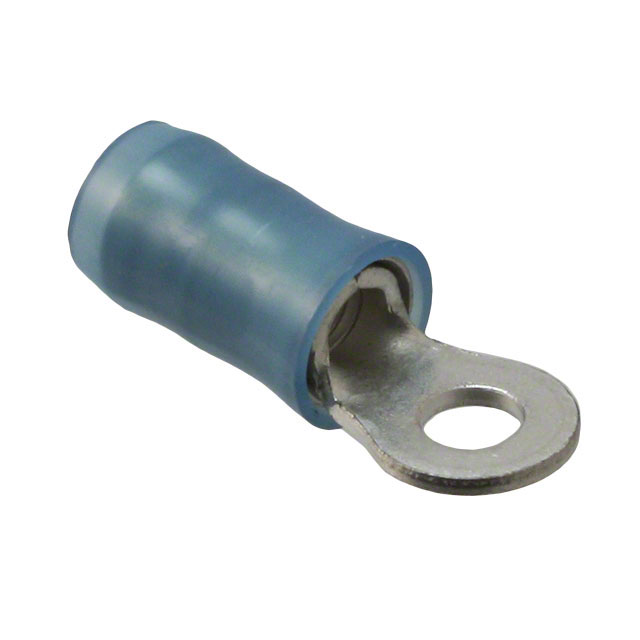

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-324159-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-324159-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-324159-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 14-16AWG #4 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.144 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-324159-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 14-16AWG #4 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144752 pcs | Data sheet | 324159 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.250" (6.35mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 4 Stud | Series | PIDG |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 14 Weeks | Length - Overall | 0.703" (17.86mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.105" ~ 0.150" (2.67mm ~ 3.81mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Ring Terminal Connector 4 Stud Circular 14-16 AWG Crimp | Contact Material | Copper |
| Contact Finish | Tin | Color | Blue |
