8-324075-1

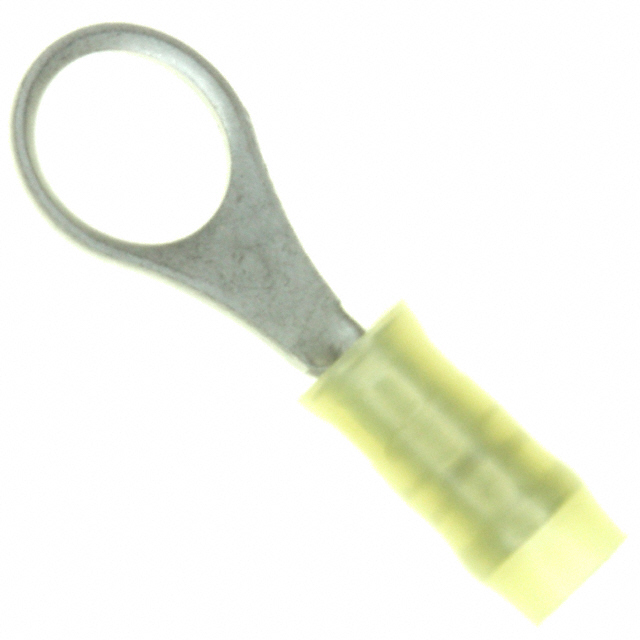

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-324075-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-324075-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-324075-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 22-26AWG #10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.297 | $0.259 | $0.244 | $0.234 | $0.224 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.204 | $0.183 | $0.163 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-324075-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 22-26AWG #10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158737 pcs | Data sheet | 324075 |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Width - Outer Edges | 0.250" (6.35mm) | Thickness | 0.018" (0.46mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 8-324075-1-ND A136725 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Overall | 0.740" (18.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.050" ~ 0.082" (1.27mm ~ 2.08mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 10 Stud Circular 22-26 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
