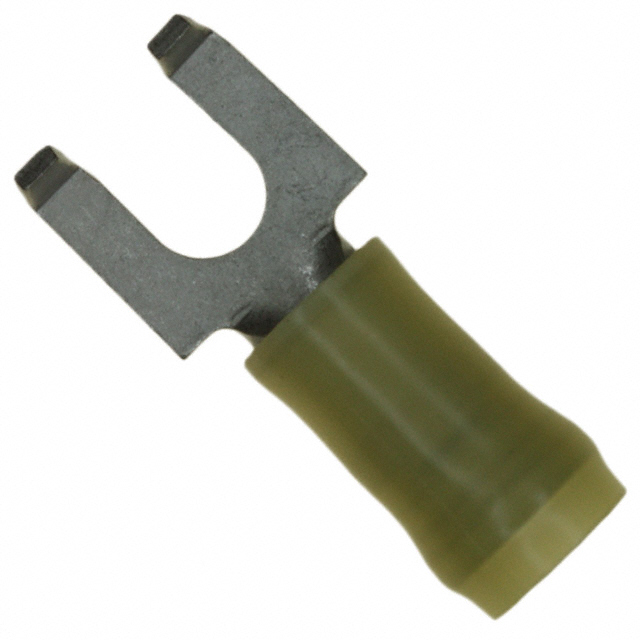

8-324015-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8-324015-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8-324015-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8-324015-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #10 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.401 | $0.354 | $0.333 | $0.319 | $0.305 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.277 | $0.25 | $0.222 | $0.201 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8-324015-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #10 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103891 pcs | Data sheet | 324015 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.416" (10.57mm) | Tongue Inside Opening | 0.197" (5.00mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 10 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 8-324015-2-ND A136724 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 20 Weeks |
| Length - Termination | 0.591" (15.01mm) | Length - Ring Center to Termination | 0.250" (6.35mm) |
| Length - Overall | 1.056" (26.82mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.250" (3.81mm ~ 6.35mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
