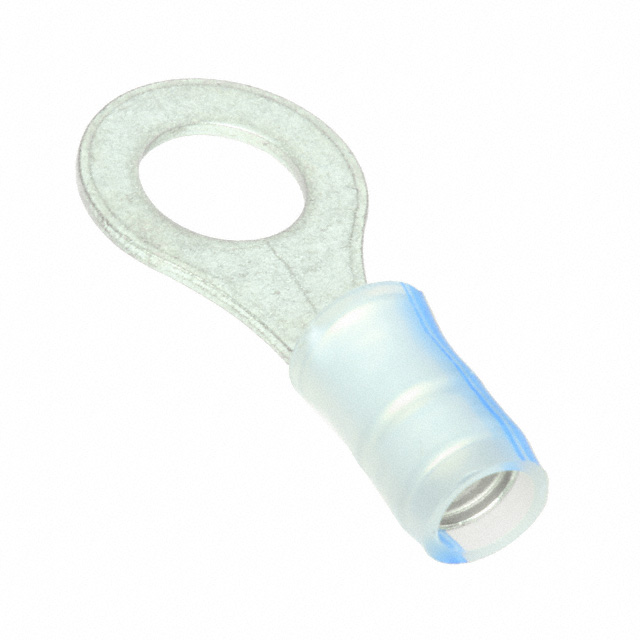

696423-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 696423-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 696423-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 696423-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 14-16AWG #1/4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.284 | $0.251 | $0.236 | $0.226 | $0.216 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.197 | $0.177 | $0.157 | $0.143 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 696423-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 14-16AWG #1/4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 150485 pcs | Data sheet | 696423 |
| Category | Connectors, Interconnects | Wire Gauge | 14-16 AWG |
| Width - Outer Edges | 0.469" (11.91mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 696423-7-ND A136444 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyvinylidene Fluoride (PVDF) | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Overall | 1.083" (27.51mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.150" (2.67mm ~ 3.81mm) | Insulation | Insulated |
| Features | Radiation Resistant, Serrated Termination | Detailed Description | Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Natural, Blue Stripe |
