696422-4

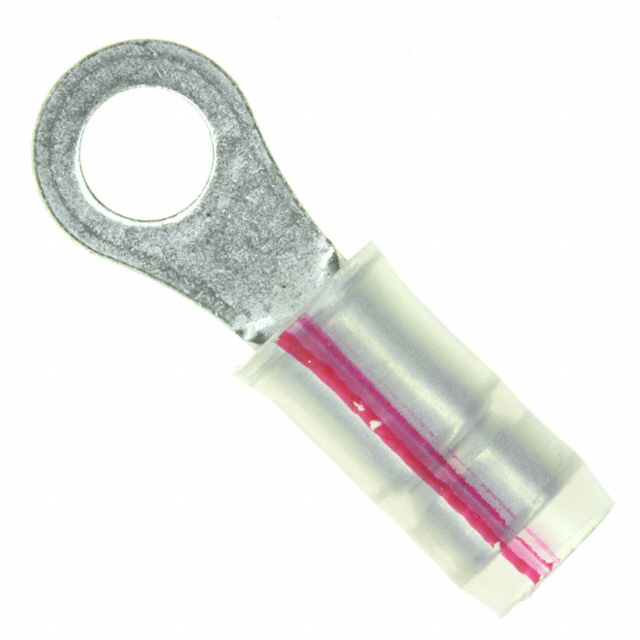

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 696422-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 696422-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 696422-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 16-22AWG #6 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.288 | $0.269 | $0.242 | $0.215 | $0.206 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.188 | $0.179 | $0.148 | $0.135 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 696422-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 16-22AWG #6 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 165362 pcs | Data sheet | 696422 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.250" (6.35mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 6964224 A33724 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyvinylidene Fluoride (PVDF) | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Overall | 0.787" (20.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | Insulation | Insulated |
| Features | Radiation Resistant, Serrated Termination | Detailed Description | Ring Terminal Connector 6 Stud Circular 16-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Natural, Red Stripe |
