696424-8

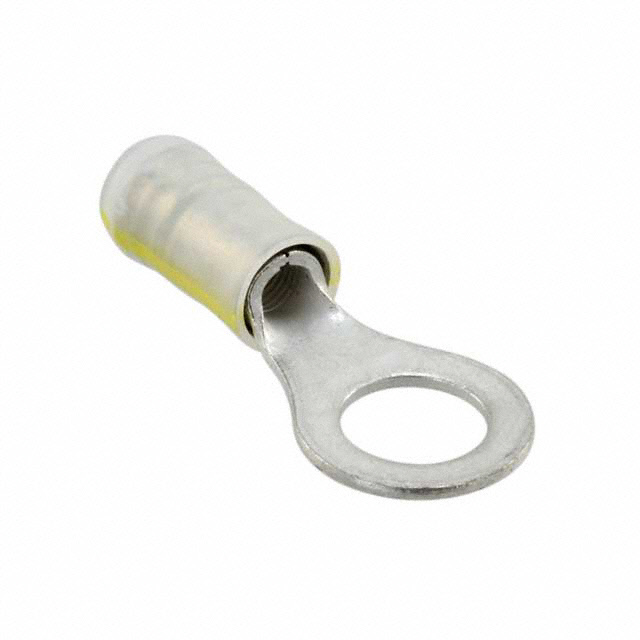

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 696424-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 696424-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 696424-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 10-12AWG #5/16 |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.508 | $0.446 | $0.419 | $0.402 | $0.384 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.349 | $0.314 | $0.28 | $0.253 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 696424-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 10-12AWG #5/16 | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 74630 pcs | Data sheet | 696424 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.531" (13.49mm) | Thickness | 0.039" (0.99mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | A117725 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyvinylidene Fluoride (PVDF) | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Overall | 1.327" (33.71mm) | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Ring Terminal Connector 5/16 Stud Circular 10-12 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Natural, Yellow Stripe |
