696422-5

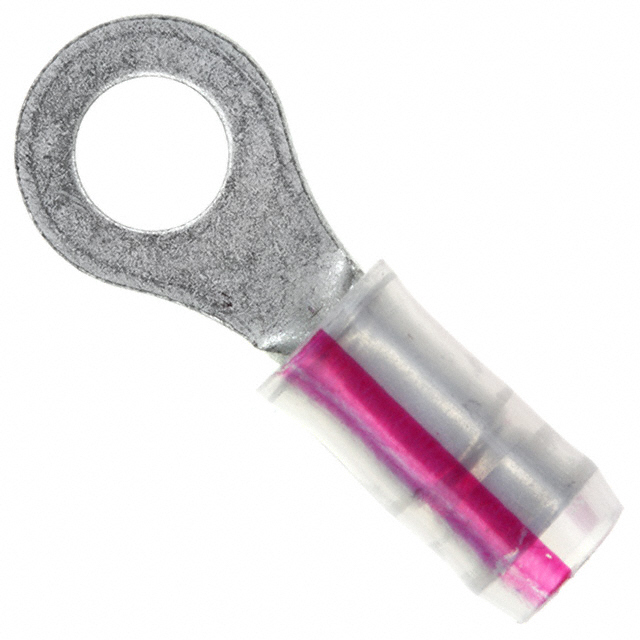

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 696422-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 696422-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 696422-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 16-22AWG #8 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.281 | $0.262 | $0.236 | $0.21 | $0.201 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.184 | $0.175 | $0.144 | $0.131 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 696422-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 16-22AWG #8 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147156 pcs | Data sheet | 696422 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.312" (7.92mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 8 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 6964225 A33725 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyvinylidene Fluoride (PVDF) | Manufacturer Standard Lead Time | 18 Weeks |
| Length - Overall | 0.849" (21.56mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) | Insulation | Insulated |
| Features | Radiation Resistant, Serrated Termination | Detailed Description | Ring Terminal Connector 8 Stud Circular 16-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Natural, Red Stripe |
