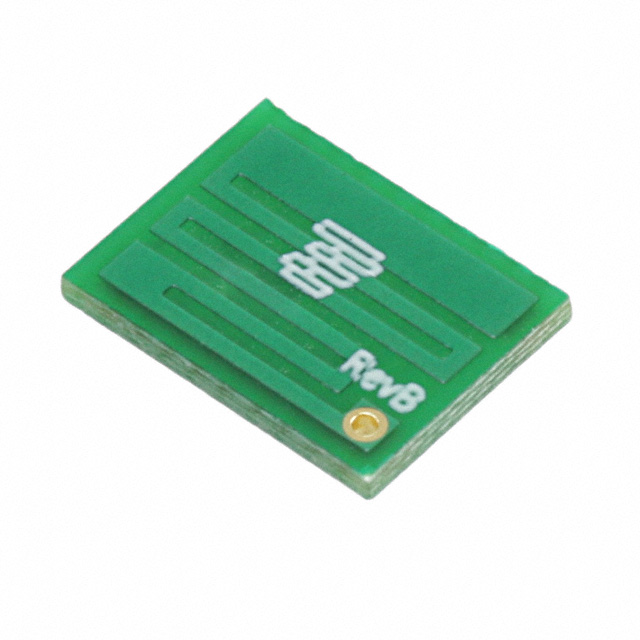

1513797-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1513797-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1513797-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1513797-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RF ANT 2.4GHZ PCB TRACE SLDR SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.572 | $0.516 | $0.461 | $0.415 | $0.369 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.323 | $0.267 | $0.249 | $0.24 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1513797-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RF ANT 2.4GHZ PCB TRACE SLDR SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78737 pcs | Data sheet | 1513797-1 Datasheet1513797 Drawing |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Solder | Series | - |
| Return Loss | - | Power - Max | 10W |
| Packaging | Bulk | Other Names | A107426 |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.031" (0.79mm) | Gain | 1dB |
| Frequency Range | 2.4GHz ~ 2.483.5GHz | Frequency Group | UHF (2 GHz ~ 3 GHz) |
| Frequency (Center/Band) | 2.4GHz | Features | - |
| Detailed Description | 2.4GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.483.5GHz 1dB Solder Surface Mount | Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Antenna Type | PCB Trace |
