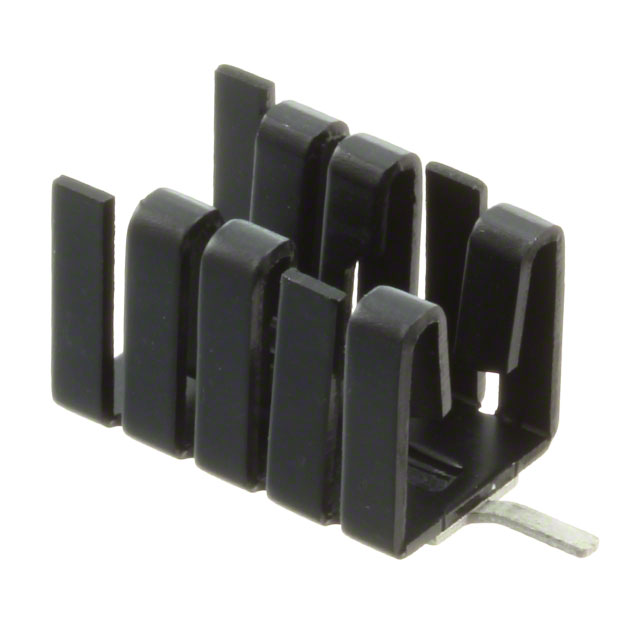

ATS-PCB1066
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1066 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1066 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1066 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-220/TO-262 W/TAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.138 | $0.132 | $0.126 | $0.122 | $0.121 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.112 | $0.106 | $0.096 | $0.093 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1066 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-220/TO-262 W/TAB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 258234 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 0.504" (12.80mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 27.30°C/W |
| Thermal Resistance @ Forced Air Flow | 10.20°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-220, TO-262 | Other Names | ATS2108 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 0.748" (19.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220, TO-262 Aluminum Board Level, Vertical | Attachment Method | Clip and PC Pin |
