ATS-PCB1073

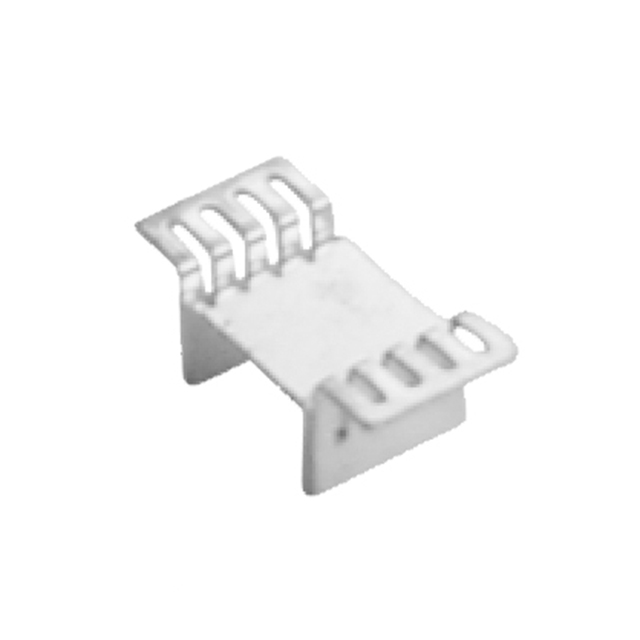

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1073 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1073 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1073 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-263 COPPER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.185 | $0.176 | $0.167 | $0.162 | $0.16 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.149 | $0.14 | $0.127 | $0.123 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1073 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-263 COPPER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 189141 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 1.031" (26.20mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 18.00°C/W |
| Thermal Resistance @ Forced Air Flow | 9.50°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-263 (D²Pak) | Other Names | ATS2115 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 0.500" (12.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.402" (10.21mm) | Diameter | - |
| Detailed Description | Heat Sink TO-263 (D²Pak) Copper Top Mount | Attachment Method | - |
