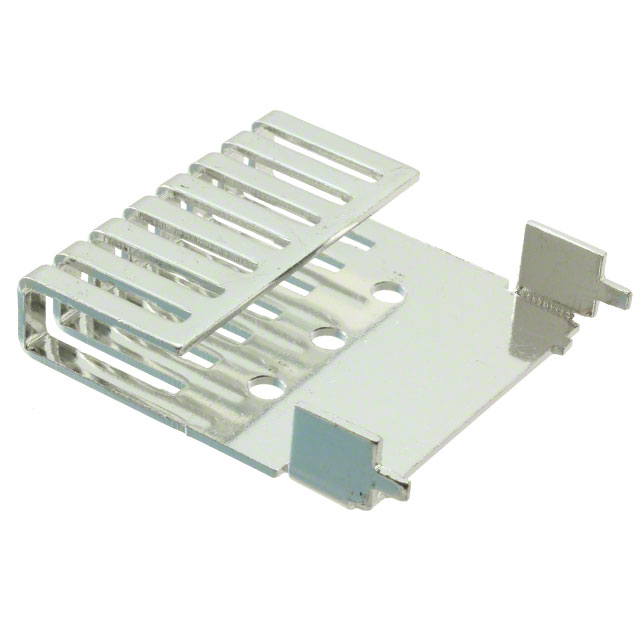

ATS-PCB1061
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1061 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1061 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1061 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TRIPLE TO-126 COPPER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.959 | $0.933 | $0.908 | $0.858 | $0.807 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.757 | $0.731 | $0.656 | $0.643 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1061 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TRIPLE TO-126 COPPER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56202 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 1.750" (44.45mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 15.00°C/W |
| Thermal Resistance @ Forced Air Flow | 6.50°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-126 | Other Names | ATS2103 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 1.759" (44.68mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.400" (10.16mm) | Diameter | - |
| Detailed Description | Heat Sink TO-126 Copper Board Level, Vertical | Attachment Method | Clip and Board Mounts |
