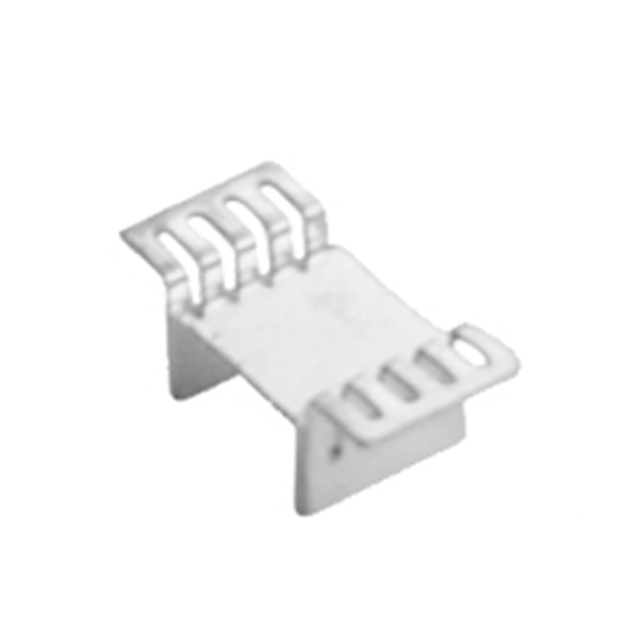

ATS-PCB1074
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-PCB1074 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-PCB1074 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-PCB1074 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK TO-263 COPPER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 1250 pcs | ||
|---|---|---|---|---|---|
| $0.186 | $0.175 | $0.159 | |||
| 6250 pcs | 12500 pcs | 25000 pcs | |||
| $0.153 | $0.143 | $0.14 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-PCB1074 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK TO-263 COPPER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 148878 pcs | Data sheet | Standard Board Level Heat Sink Catalog |
| Category | Fans, Thermal Management | Width | 1.031" (26.20mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 18.00°C/W |
| Thermal Resistance @ Forced Air Flow | 9.50°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | TO-263 (D²Pak) | Other Names | ATS2116 ATS2116-ND ATS2116TR |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Tin |
| Material | Copper | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 0.500" (12.70mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.401" (10.20mm) | Diameter | - |
| Detailed Description | Heat Sink TO-263 (D²Pak) Copper Top Mount | Attachment Method | - |
