AWCR-3.58MD

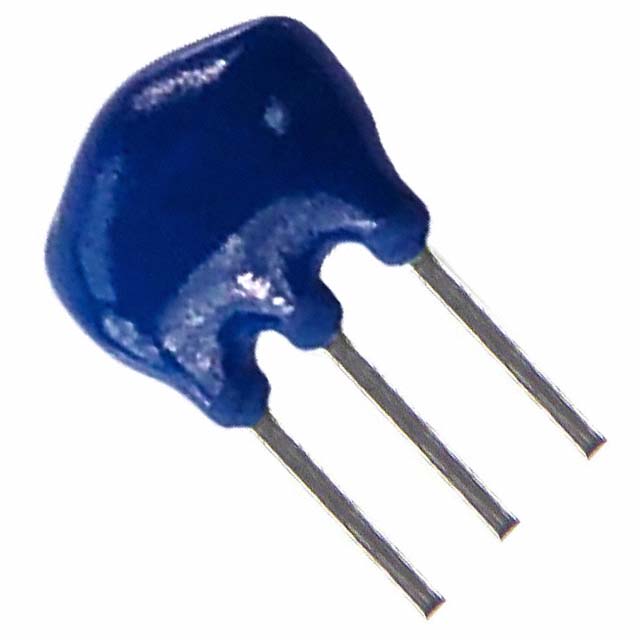

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCR-3.58MD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCR-3.58MD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCR-3.58MD |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | CER RES 3.5800MHZ 30PF T/H |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 500 pcs |
|---|---|---|---|---|---|
| $0.098 | $0.082 | $0.074 | $0.066 | $0.062 | |
| 1000 pcs | 2500 pcs | 5000 pcs | 10000 pcs | ||
| $0.052 | $0.049 | $0.047 | $0.046 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCR-3.58MD | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | CER RES 3.5800MHZ 30PF T/H | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 448939 pcs | Data sheet | AWCR-MD SeriesAWCR-MD Drawing |
| Category | Crystals, Oscillators, Resonators | Type | Ceramic |
| Size / Dimension | 0.394" L x 0.197" W (10.00mm x 5.00mm) | Series | AWCR |
| Packaging | Bulk | Package / Case | Radial - 3 Lead, 2.50mm Pitch |
| Other Names | 300-9358 300-9358-ND 535-9358 AWCR-3.580MD AWCR3.580MD |
Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Impedance | 30 Ohms | Height | 0.315" (8.00mm) |
| Frequency Tolerance | ±0.5% | Frequency Stability | ±0.3% |
| Frequency | 3.58MHz | Features | Built in Capacitor |
| Detailed Description | 3.58MHz Ceramic Resonator Built in Capacitor 30pF ±0.3% 30 Ohms -25°C ~ 85°C Through Hole | Capacitance | 30pF |
