A-DF 25 AA-WP

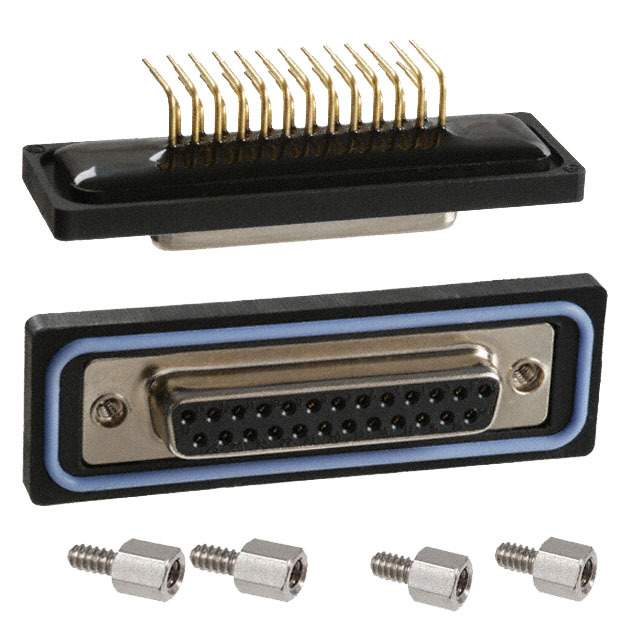

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-DF 25 AA-WP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-DF 25 AA-WP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-DF 25 AA-WP |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB RCPT 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $7.216 | $6.701 | $6.014 | $5.842 | ||
| 100 pcs | 260 pcs | 500 pcs | |||
| $5.155 | $4.811 | $4.708 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-DF 25 AA-WP | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6831 pcs | Data sheet | A-DF25AA-WP Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | - |
| Series | - | Packaging | Tray |
| Other Names | A-DF 25 AA-WP-R A-DF-25-AA-WP A-DF25AA-WP-R ADF25AAWPR AE10111 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Flange Feature | Mating Side, Female Screwlock |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | - | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.244" (6.20mm) |
