A-DF 25 PP/Z

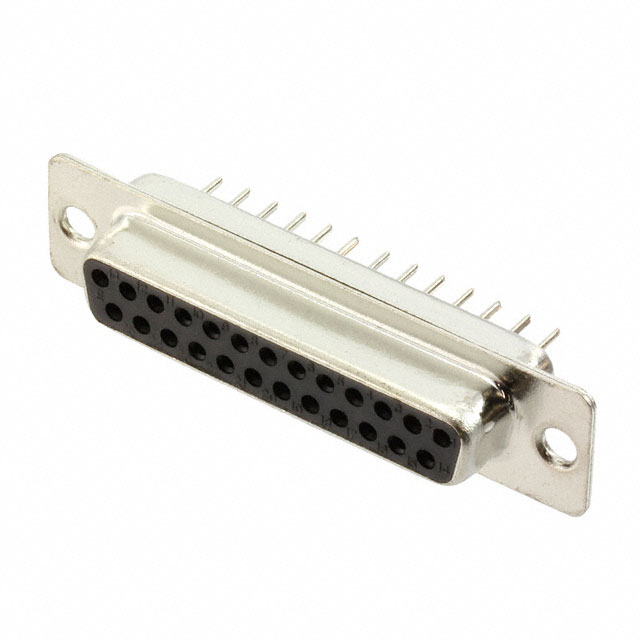

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-DF 25 PP/Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-DF 25 PP/Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-DF 25 PP/Z |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB RCPT 25POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.418 | $0.367 | $0.346 | $0.331 | $0.317 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.288 | $0.259 | $0.231 | $0.209 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-DF 25 PP/Z | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98035 pcs | Data sheet | A-DF,S xx PP/Z DrawingD-Sub & Centronics Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | A-DF-25-PP/Z A-DF25PP-TL-B-R A-DF25PP-TL-B-R-ND AE10940 |
Operating Temperature | -20°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Gray | Backset Spacing | - |
