A-DF 15 PP-WP

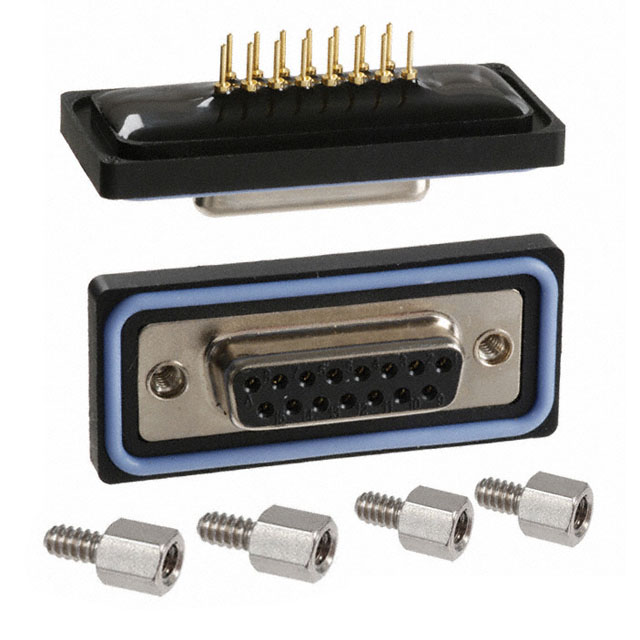

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-DF 15 PP-WP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-DF 15 PP-WP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-DF 15 PP-WP |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $4.608 | $4.189 | $4.084 | $3.77 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $3.561 | $3.247 | $3.037 | $2.786 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-DF 15 PP-WP | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15P PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12769 pcs | Data sheet | A-DF-15-PP-WP Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | - |
| Series | - | Packaging | Tray |
| Other Names | A-DF 15 PP-WP-R A-DF-15-PP-WP A-DF15PP-WP-R ADF15PPWPR AE10103 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Flange Feature | Mating Side, Female Screwlock |
| Features | - | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | - | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
