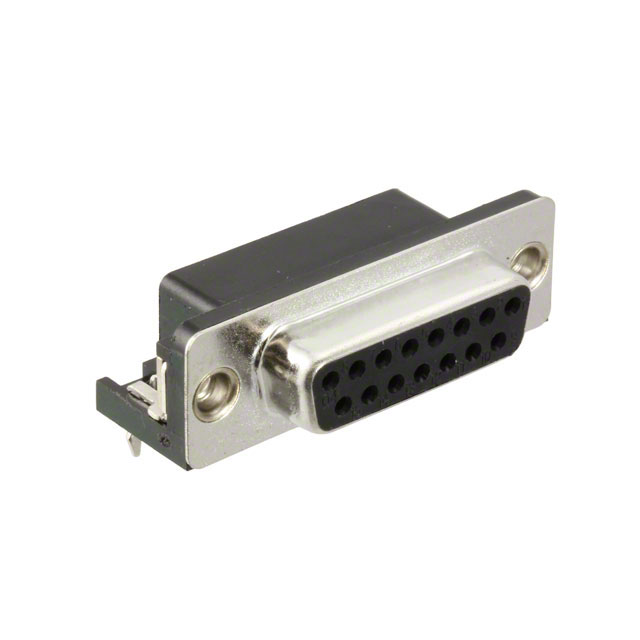

A-DF 15 A/KG-T4S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-DF 15 A/KG-T4S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-DF 15 A/KG-T4S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-DF 15 A/KG-T4S |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB RCPT 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | 140 pcs |
|---|---|---|---|---|---|
| $0.389 | $0.341 | $0.321 | $0.307 | $0.294 | |
| 280 pcs | 560 pcs | 1050 pcs | 2520 pcs | ||
| $0.267 | $0.24 | $0.214 | $0.194 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-DF 15 A/KG-T4S | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121987 pcs | Data sheet | A-Dz zzA/KG-Tzz Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | A-DF-15-A/KG-T4S ADF15A-KG-TAXB3-R ADF15A-KG-TAXB3-R-ND AE10931 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.319" (8.10mm) |
