Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > FOD814S

FOD814S

FOD814S

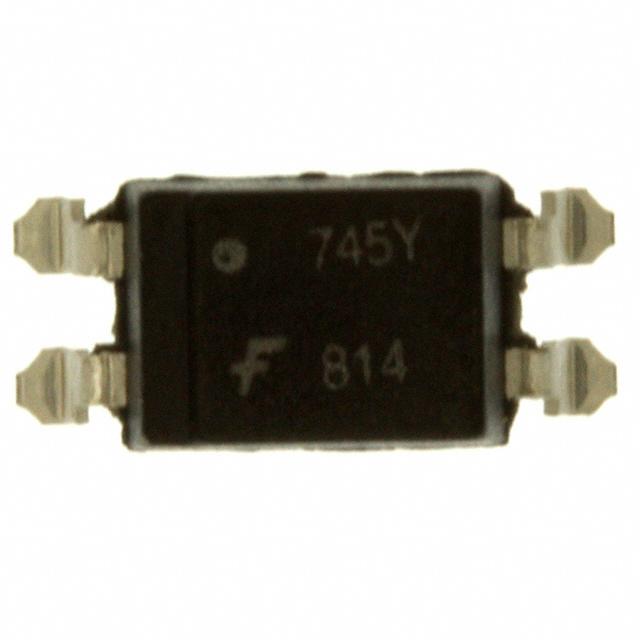

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FOD814S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FOD814S
Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 256069 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs1000 pcs
$0.229$0.179$0.129$0.099$0.076

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.229

Product parameter

Part Number FOD814S Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 256069 pcs Data sheet FOD814, 817 Series
Category Isolators Voltage - Output (Max) 70V
Voltage - Isolation 5000Vrms Voltage - Forward (Vf) (Typ) 1.2V
Vce Saturation (Max) 200mV Turn On / Turn Off Time (Typ) -
Supplier Device Package 4-SMD Series -
Rise / Fall Time (Typ) 4µs, 3µs Packaging Tube
Package / Case 4-SMD, Gull Wing Output Type Transistor
Operating Temperature -55°C ~ 105°C Number of Channels 1
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 8 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Type AC, DC Detailed Description Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Current Transfer Ratio (Min) 20% @ 1mA Current Transfer Ratio (Max) 300% @ 1mA
Current - Output / Channel 50mA Current - DC Forward (If) (Max) 50mA
