FOD8143SD

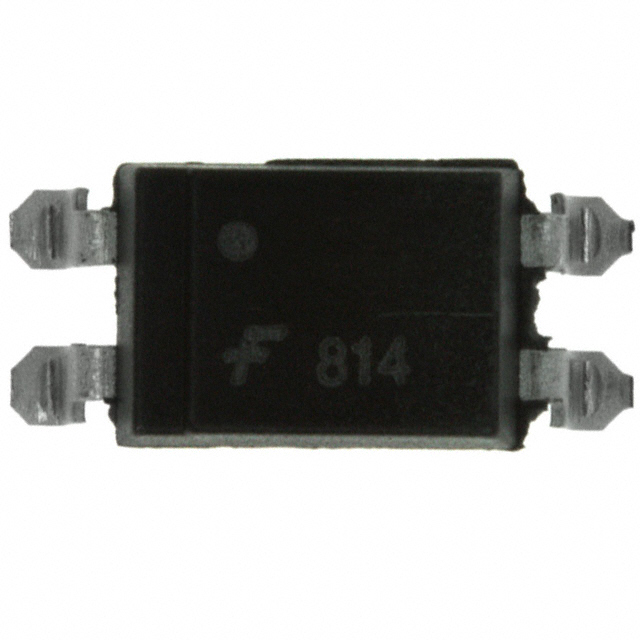

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FOD8143SD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FOD8143SD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FOD8143SD |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISOLATOR 5KV TRANSISTOR 4SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.091 | $0.082 | $0.077 | |||
| 10000 pcs | 25000 pcs | 50000 pcs | |||
| $0.074 | $0.073 | $0.07 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | FOD8143SD | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRANSISTOR 4SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 313437 pcs | Data sheet | FOD814, 817 Series |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | FOD8143SDTR | Operating Temperature | -55°C ~ 105°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | AC, DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD | Current Transfer Ratio (Min) | 20% @ 1mA |
| Current Transfer Ratio (Max) | 300% @ 1mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
