Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > FOD814A3S

FOD814A3S

FOD814A3S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FOD814A3S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FOD814A3S
Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 5496 pcs
Reference Price
(In US Dollars)		Get a quote

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.00

Product parameter

Part Number FOD814A3S Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5496 pcs Data sheet FOD814, 817 Series
Category Isolators Voltage - Output (Max) 70V
Voltage - Isolation 5000Vrms Voltage - Forward (Vf) (Typ) 1.2V
Vce Saturation (Max) 200mV Turn On / Turn Off Time (Typ) -
Supplier Device Package 4-SMD Series -
Rise / Fall Time (Typ) 4µs, 3µs Packaging Tube
Package / Case 4-SMD, Gull Wing Output Type Transistor
Operating Temperature -55°C ~ 105°C Number of Channels 1
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type AC, DC
Detailed Description Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD Current Transfer Ratio (Min) 50% @ 1mA
Current Transfer Ratio (Max) 150% @ 1mA Current - Output / Channel 50mA
Current - DC Forward (If) (Max) 50mA

Related products

FOD814SD Image
$0.071/pcsRFQ
FOD815 Image
 RFQ
FOD814A300 Image
$0.077/pcsRFQ
FOD814 Image
$0.072/pcsRFQ
FOD814AW Image
 RFQ
FOD815300 Image
 RFQ
FOD814AS Image
$0.087/pcsRFQ
FOD815300W Image
 RFQ
FOD814A Image
$0.071/pcsRFQ
FOD814S Image
$0.076/pcsRFQ
FOD8012R2 Image
 RFQ
FOD814ASD Image
$0.058/pcsRFQ
FOD814A300W Image
$0.081/pcsRFQ

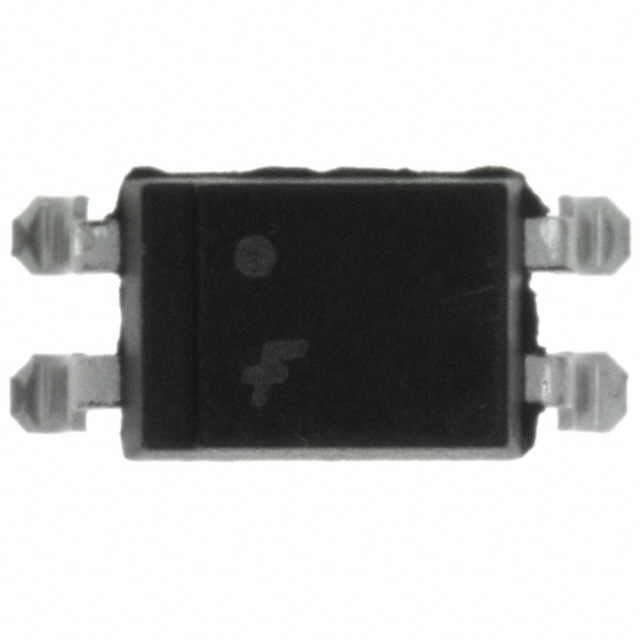

FOD814A3SD Image
