Home > Products > Isolators > Optoisolators - Transistor, Photovoltaic Output > FOD814ASD

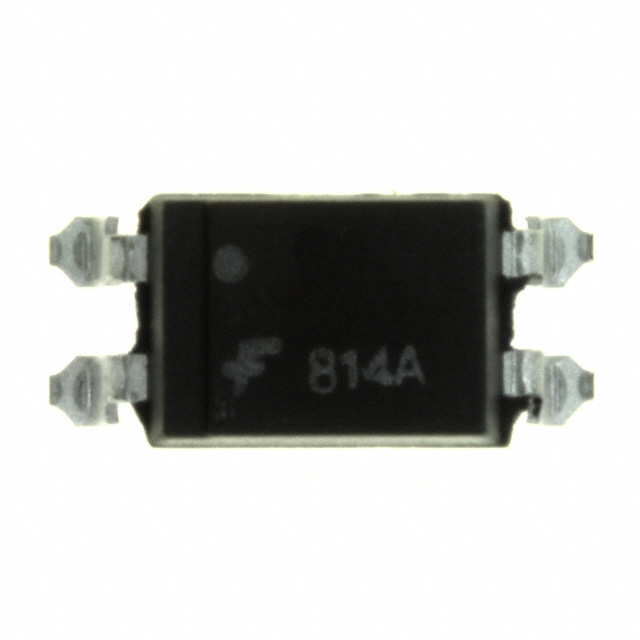

FOD814ASD

FOD814ASD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FOD814ASD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number FOD814ASD
Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 405708 pcs
Reference Price
(In US Dollars)		1000 pcs2000 pcs5000 pcs
$0.075$0.068$0.063
10000 pcs25000 pcs50000 pcs
$0.061$0.06$0.058

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.075

Product parameter

Part Number FOD814ASD Manufacturer AMI Semiconductor / ON Semiconductor
Description OPTOISOLATOR 5KV TRANSISTOR 4SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 405708 pcs Data sheet FOD814, 817 Series
Category Isolators Voltage - Output (Max) 70V
Voltage - Isolation 5000Vrms Voltage - Forward (Vf) (Typ) 1.2V
Vce Saturation (Max) 200mV Turn On / Turn Off Time (Typ) -
Supplier Device Package 4-SMD Series -
Rise / Fall Time (Typ) 4µs, 3µs Packaging Tape & Reel (TR)
Package / Case 4-SMD, Gull Wing Output Type Transistor
Other Names FOD814ASDTR Operating Temperature -55°C ~ 105°C
Number of Channels 1 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 8 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Type AC, DC
Detailed Description Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD Current Transfer Ratio (Min) 50% @ 1mA
Current Transfer Ratio (Max) 150% @ 1mA Current - Output / Channel 50mA
Current - DC Forward (If) (Max) 50mA
