CHG-2024-J01010-KCP

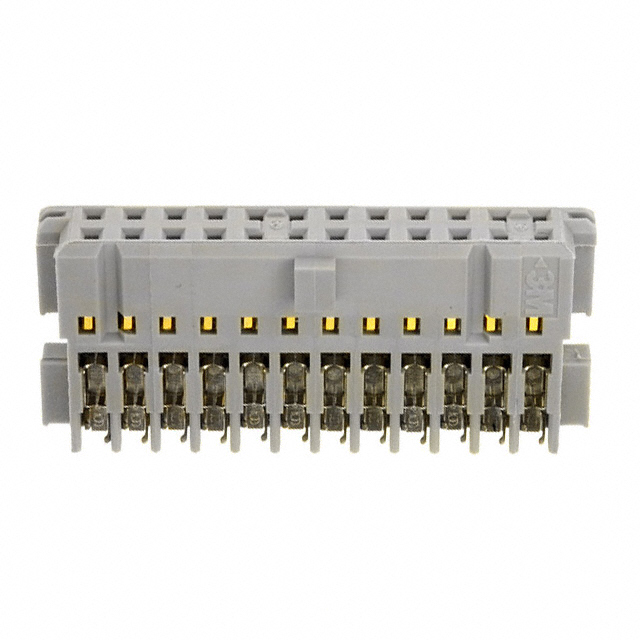

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CHG-2024-J01010-KCP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CHG-2024-J01010-KCP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CHG-2024-J01010-KCP |
|---|---|
| Manufacturer | 3M |
| Description | CONN RECEPT IDC 24POS 28-26 AWG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.851 | $2.729 | $2.481 | $2.357 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.295 | $2.047 | $1.923 | $1.699 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CHG-2024-J01010-KCP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RECEPT IDC 24POS 28-26 AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18314 pcs | Data sheet | CHG-20 Series, Polarized DatasheetInterconnect CatalogCHG Series Specification |
| Category | Connectors, Interconnects | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 26-28 AWG | Series | CHG |
| Row Spacing | 0.100" (2.54mm) | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 00054007746324 05400774632 3M9059 5400774632 54007746324 7010398329 80610562375 CHG2024J01010KCP |
| Number of Rows | 2 | Number of Positions | 24 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Closed End, Polarizing Key | Fastening Type | - |
| Detailed Description | 24 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG | Contact Type | Female Socket |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Color | Gray |
| Cable Termination | IDC |
