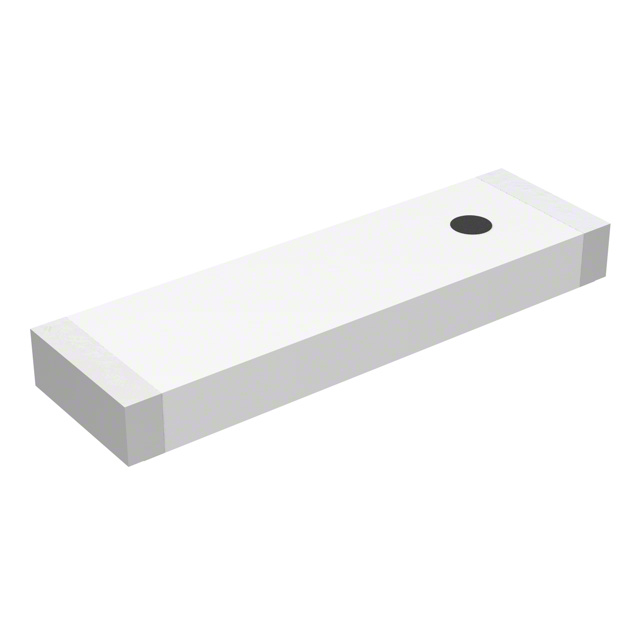

ANT7020LL05R2400A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT7020LL05R2400A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT7020LL05R2400A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT7020LL05R2400A |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.569 | $0.515 | $0.459 | $0.413 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.367 | $0.322 | $0.266 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT7020LL05R2400A | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83067 pcs | Data sheet | ANT7020LL05R2400A |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -10dB | Power - Max | 1W |
| Packaging | Cut Tape (CT) | Other Names | 311-1549-1 |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.030" (0.75mm) | Gain | 2.62dBi |
| Frequency Range | 2.2GHz ~ 2.7GHz | Frequency Group | UHF (2 GHz ~ 3 GHz) |
| Frequency (Center/Band) | 2.4GHz | Features | - |
| Detailed Description | 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.2GHz ~ 2.7GHz 2.62dBi Solder Surface Mount | Applications | Bluetooth, WLAN, Zigbee™ |
| Antenna Type | Chip |
