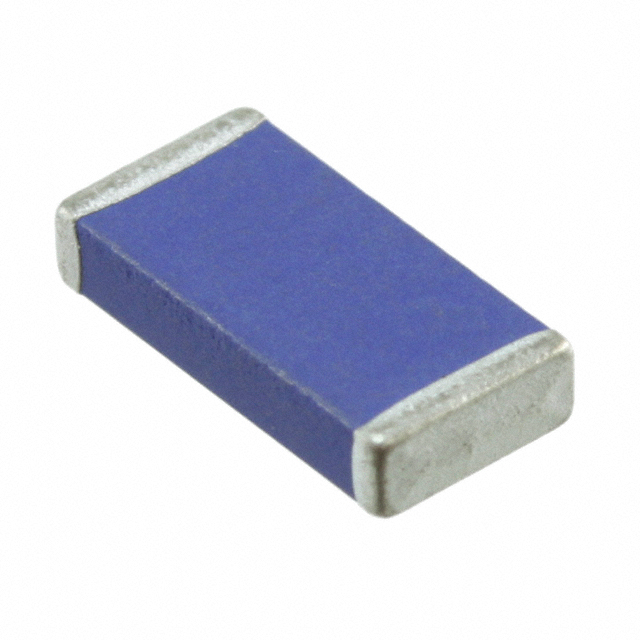

ANT6230LL01R1575A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT6230LL01R1575A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT6230LL01R1575A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT6230LL01R1575A |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.668 | $0.604 | $0.54 | $0.486 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.432 | $0.378 | $0.313 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT6230LL01R1575A | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 1.575GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73744 pcs | Data sheet | ANT6230LL01R1575A |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | 6230 |
| Return Loss | -10dB | Power - Max | 1W |
| Packaging | Cut Tape (CT) | Other Names | 311-1548-1 |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.049" (1.25mm) | Gain | 2.52dBi |
| Frequency Range | 1.548GHz ~ 1.602GHz | Frequency Group | UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band) | 1.575GHz | Features | - |
| Detailed Description | 1.575GHz GPS Chip RF Antenna 1.548GHz ~ 1.602GHz 2.52dBi Solder Surface Mount | Applications | GPS |
| Antenna Type | Chip |
