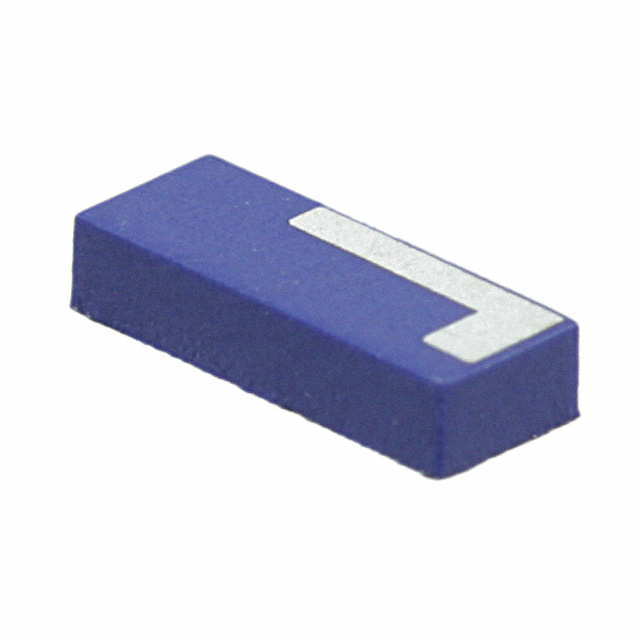

ANT5320LL24R2400A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ANT5320LL24R2400A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ANT5320LL24R2400A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ANT5320LL24R2400A |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.592 | $0.525 | $0.474 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ANT5320LL24R2400A | Manufacturer | Yageo |
|---|---|---|---|
| Description | RF ANT 2.4GHZ CHIP SOLDER SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73405 pcs | Data sheet | ANT5320LL24R2400A |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -19dB | Power - Max | 1W |
| Packaging | Cut Tape (CT) | Other Names | 311-1546-1 |
| Number of Bands | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.047" (1.20mm) |
| Gain | 2.78dBi | Frequency Range | 2.408GHz ~ 2.492GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | Frequency (Center/Band) | 2.4GHz |
| Features | - | Detailed Description | 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.408GHz ~ 2.492GHz 2.78dBi Solder Surface Mount |
| Applications | Bluetooth, WLAN, Zigbee™ | Antenna Type | Chip |
