Home > Products > Relays > Power Relays, Over 2 Amps > 8690400000

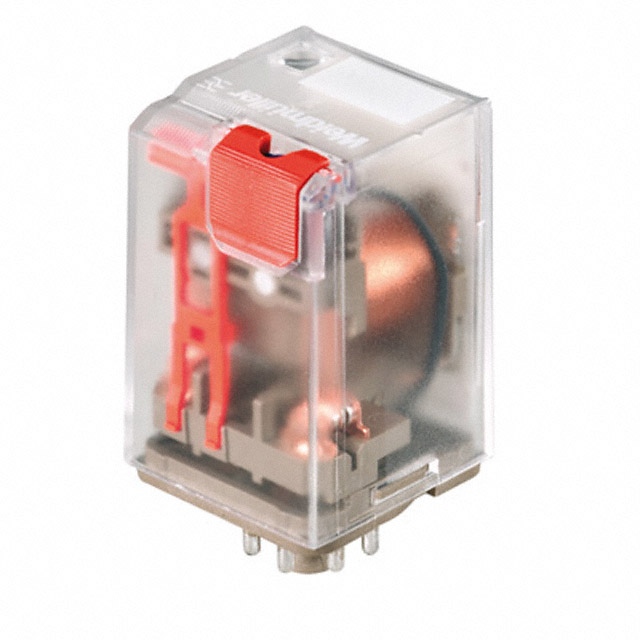

8690400000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8690400000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	8690400000
Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE DPDT 10A 48V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3751 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$10.032

Product parameter
Data sheet

Product parameter

Part Number	8690400000	Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE DPDT 10A 48V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3751 pcs	Data sheet	Industrial Relay/Opto Modules-6mm
Category	Relays	Turn On Voltage (Max)	36 VDC
Turn Off Voltage (Min)	4.8 VDC	Termination Style	Plug In, 8 Pin (Octal)
Switching Voltage	400VAC - Max	Series	RRD
Release Time	10ms	Relay Type	General Purpose
Packaging	Bulk	Operating Temperature	-40°C ~ 50°C
Operate Time	15ms	Mounting Type	Socketable
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	LED Indicator, Test Button	Detailed Description	General Purpose Relay DPDT (2 Form C) 48VDC Coil Socketable
Contact Rating (Current)	10A	Contact Material	Silver Nickel (AgNi)
Contact Form	DPDT (2 Form C)	Coil Voltage	48VDC
Coil Type	Non Latching	Coil Resistance	1.92 kOhms
Coil Power	1.2 W	Coil Current	25.0mA
