8690300000

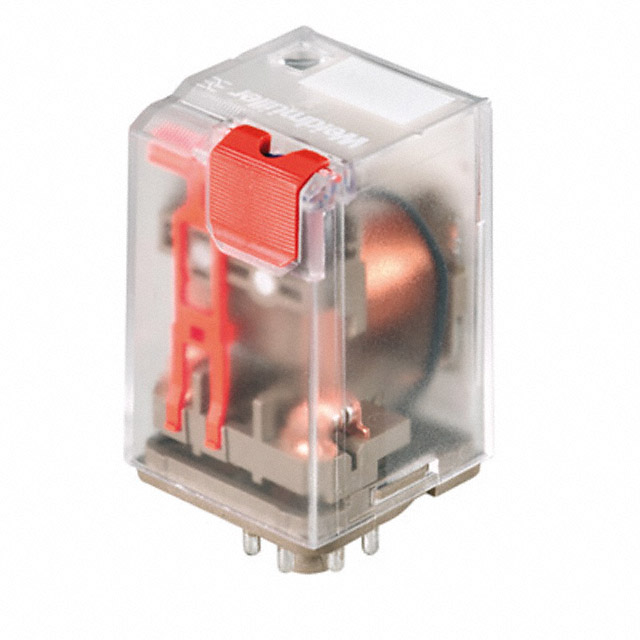

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8690300000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8690300000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8690300000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | RELAY GEN PURPOSE DPDT 10A 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $11.745 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8690300000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 10A 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2800 pcs | Data sheet | 8690300000 |
| Category | Relays | Turn On Voltage (Max) | 38.4 VAC |
| Turn Off Voltage (Min) | 14.4 VAC | Termination Style | Plug In, 8 Pin (Octal) |
| Switching Voltage | 400VAC - Max | Series | RRD |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -40°C ~ 50°C |
| Operate Time | 15ms | Mounting Type | Socketable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | LED Indicator, Test Button |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 48VAC Coil Socketable | Contact Rating (Current) | 10A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 48VAC | Coil Type | Non Latching |
| Coil Resistance | 345 Ohms | Coil Power | 2.3 VA |
| Coil Current | 47.5mA |
