Home > Products > Relays > Power Relays, Over 2 Amps > 8690580000

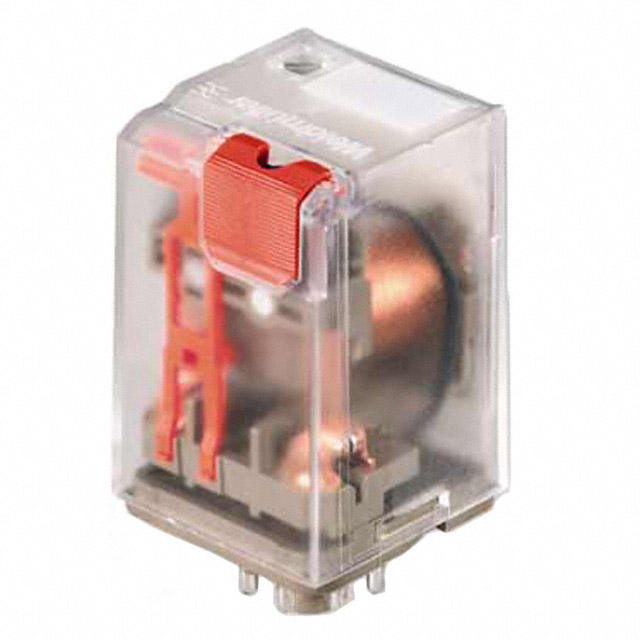

8690580000

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8690580000 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	8690580000
Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE 3PDT 10A 230V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2619 pcs
Reference Price (In US Dollars)	25 pcs
Reference Price (In US Dollars)	$12.562

Product parameter
Data sheet

Product parameter

Part Number	8690580000	Manufacturer	Weidmuller
Description	RELAY GEN PURPOSE 3PDT 10A 230V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2619 pcs	Data sheet	Industrial Relay/Opto Modules-6mm
Category	Relays	Turn On Voltage (Max)	184 VAC
Turn Off Voltage (Min)	92 VAC	Termination Style	Plug In, 11 Pin (Octal)
Switching Voltage	400VAC - Max	Series	RRD
Release Time	10ms	Relay Type	General Purpose
Packaging	Bulk	Operating Temperature	-40°C ~ 60°C
Operate Time	15ms	Mounting Type	Socketable
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	LED Indicator, Test Button
Detailed Description	General Purpose Relay 3PDT (3 Form C) 230VAC Coil Socketable	Contact Rating (Current)	10A
Contact Material	Silver Nickel (AgNi)	Contact Form	3PDT (3 Form C)
Coil Voltage	230VAC	Coil Type	Non Latching
Coil Resistance	8.3 kOhms	Coil Power	2.3 VA
Coil Current	10.1mA
