Home > Products > Power Supplies - Board Mount > DC DC Converters > PI3749-20-LGIZ

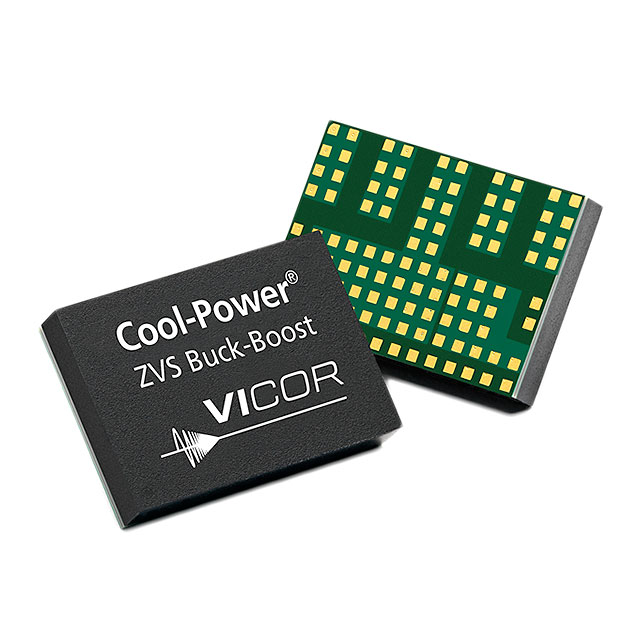

PI3749-20-LGIZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3749-20-LGIZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PI3749-20-LGIZ
Manufacturer	Vicor
Description	DC DC CONVERTER 12-34V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5543 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$6.723	$6.62

Product parameter
Data sheet

Product parameter

Part Number	PI3749-20-LGIZ	Manufacturer	Vicor
Description	DC DC CONVERTER 12-34V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5543 pcs	Data sheet	PI3749-x0 Datasheet
Category	Power Supplies - Board Mount	Voltage - Output 4	-
Voltage - Output 3	-	Voltage - Output 2	-
Voltage - Output 1	12 ~ 34 V	Voltage - Input (Min)	16V
Voltage - Input (Max)	34V	Type	Non-Isolated PoL Module, Digital
Supplier Device Package	108-LGA (14x10)	Size / Dimension	0.55" L x 0.39" W x 0.10" H (14.0mm x 10.0mm x 2.6mm)
Series	Cool-Power®	Packaging	Tray
Package / Case	108-BLGA Module	Other Names	1102-5832 PI3749-20-LGIZ-ND PI374920LGIZ
Operating Temperature	-40°C ~ 125°C	Number of Outputs	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	Efficiency	98%
Detailed Description	Non-Isolated PoL Module, Digital DC DC Converter 1 Output 12 ~ 34 V 7.5A 16V - 34V Input	Current - Output (Max)	7.5A
Applications	ITE (Commercial)
