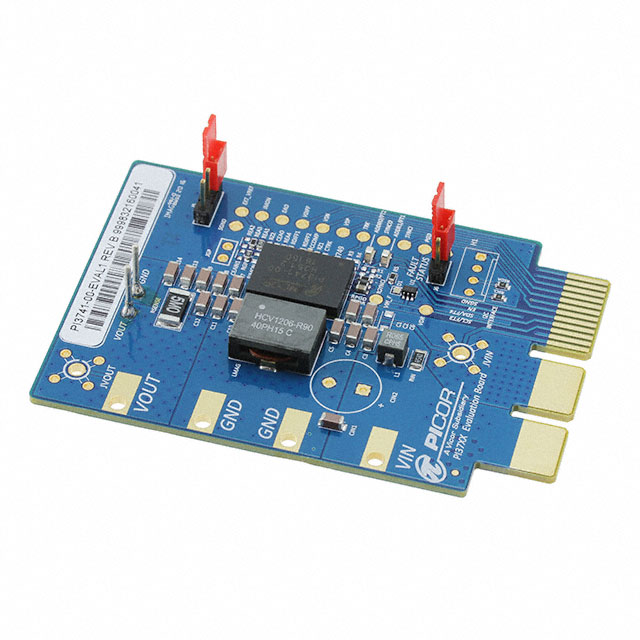

PI3741-00-EVAL1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PI3741-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PI3741-00-EVAL1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PI3741-00-EVAL1 |
|---|---|
| Manufacturer | Vicor |
| Description | EVALUATION BOARD FOR PI3741-00-L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $16.997 | $16.731 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PI3741-00-EVAL1 | Manufacturer | Vicor |
|---|---|---|---|
| Description | EVALUATION BOARD FOR PI3741-00-L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2198 pcs | Data sheet | PI3741-0x-EVAL1 User Guide |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 24V |
| Voltage - Input | 21 V ~ 60 V | Utilized IC / Part | PI3741-00 |
| Supplied Contents | Board(s) | Series | Cool-Power® |
| Regulator Topology | Buck-Boost | Power - Output | 150W |
| Outputs and Type | 1, Non-Isolated | Other Names | 1102-5523 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 16 Weeks |
| Main Purpose | DC/DC, Step Up or Down | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | - | Detailed Description | PI3741-00 Cool-Power® DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | - | Board Type | Fully Populated |
