Home > Products > Transformers > Power Transformers > VPT48-20830

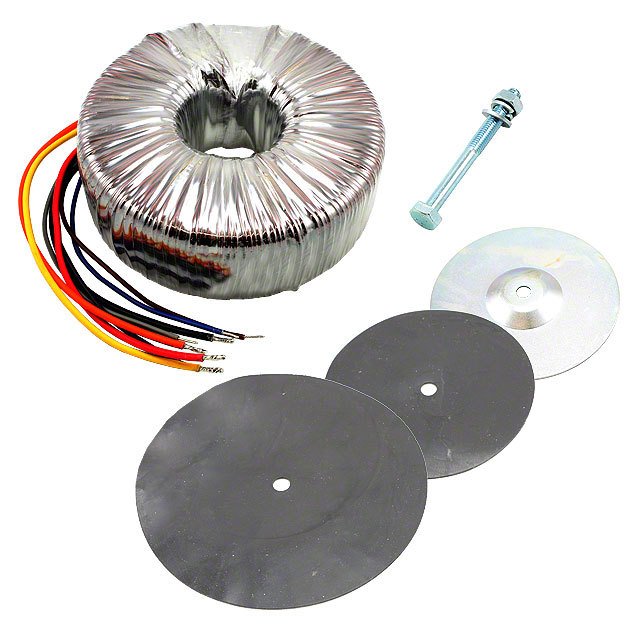

VPT48-20830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VPT48-20830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VPT48-20830
Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 1000VA CHAS MOUNT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 782 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$51.13	$49.425	$46.016	$42.607

Product parameter
Data sheet

Product parameter

Part Number	VPT48-20830	Manufacturer	Triad Magnetics
Description	XFRMR TOROIDAL 1000VA CHAS MOUNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	782 pcs	Data sheet	VPT48-20830
Category	Transformers	Weight	18 lbs (8.2kg)
Voltage - Secondary (Full Load)	Parallel 24V, Series 48V	Voltage - Primary	115V, 230V
Voltage - Isolation	4000Vrms	Type	Toroidal
Termination Style	Wire Leads	Size / Dimension	175.00mm Dia x 68.00mm W
Series	Chassis Mount: World Series™	Secondary Winding(s)	Dual
Primary Winding(s)	Dual	Power - Max	1000 VA
Other Names	237-1361 VPT4820830	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Current - Output (Max)	Parallel 41.66A, Series 20.83A	Center Tap	No
