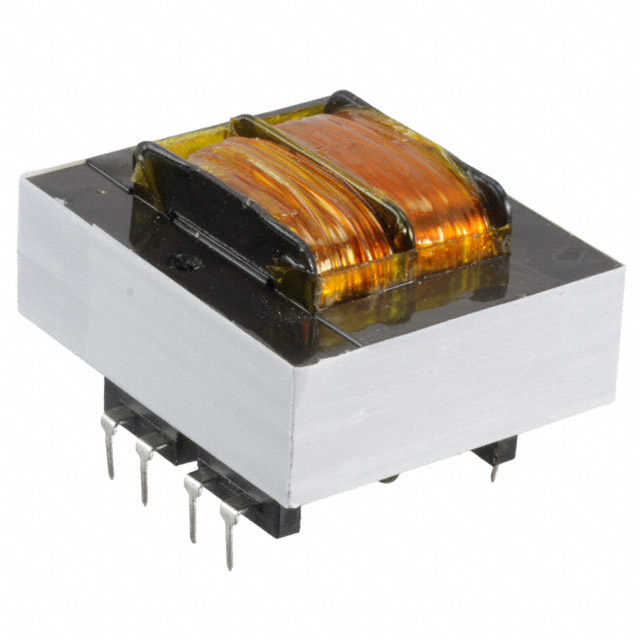

FS24-800-C2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FS24-800-C2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FS24-800-C2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FS24-800-C2 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED 20VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 48 pcs | 96 pcs | |
|---|---|---|---|---|---|
| $5.027 | $3.713 | $3.427 | $3.313 | ||
| 144 pcs | 288 pcs | 528 pcs | 1008 pcs | ||
| $3.222 | $3.176 | $3.142 | $3.085 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FS24-800-C2 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | XFRMR LAMINATED 20VA THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10960 pcs | Data sheet | FS24-800-C2 |
| Category | Transformers | Weight | 0.8 lb (362.87g) |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V | Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 4200Vrms | Type | Laminated Core |
| Termination Style | PC Pin | Size / Dimension | 57.15mm L x 47.63mm W |
| Series | Split Pack™, Class 2/3, FS | Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual | Power - Max | 20 VA |
| Other Names | 237-1523 FS24-800-C2-B |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 36.50mm |
| Current - Output (Max) | Parallel 1.6A, Series 800mA | Center Tap | No |
