CSE187L-P

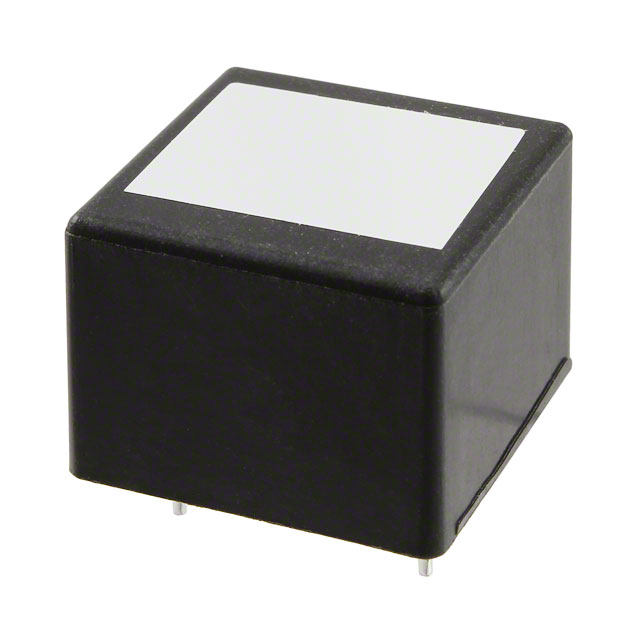

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CSE187L-P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CSE187L-P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CSE187L-P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 1:500 30A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.78 | $1.442 | $1.166 | $1.092 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.043 | $1.012 | $0.982 | $0.951 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CSE187L-P | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:500 30A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38083 pcs | Data sheet | CSE187L-P |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:500 |
| Termination Style | PC Pin | Size / Dimension | 0.875" L x 0.875" W (22.23mm x 22.23mm) |
| Series | CSE | Ratings | - |
| Packaging | Bulk | Other Names | 237-1628 CSE187L-P-ND Q2465469 Q3453587 |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.720" (18.29mm) |
| Frequency Range | 50Hz ~ 400Hz | Energy Time (E.T.) | - |
| Detailed Description | 30A 1:500 Current Sense Transformer 50Hz ~ 400Hz 3 mOhm Primary, 21 Ohm Secondary Through Hole | DC Resistance (DCR) | 3 mOhm Primary, 21 Ohm Secondary |
| Current Ratio | - | Current Rating | 30A |
