CSE5-100301

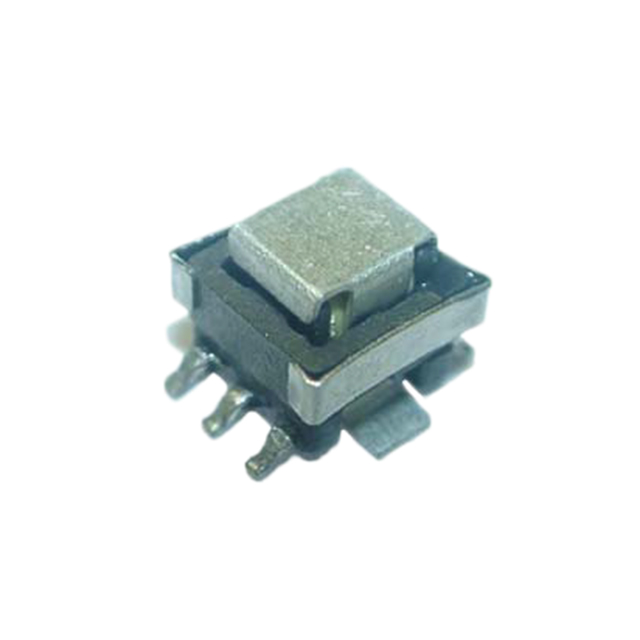

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CSE5-100301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CSE5-100301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CSE5-100301 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CURR SENSE XFMR 1:30 10A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 5250 pcs | ||
|---|---|---|---|---|---|
| $0.635 | $0.615 | $0.565 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CSE5-100301 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:30 10A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69954 pcs | Data sheet | CSE5-100301 Datasheet |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:30 |
| Termination Style | Gull Wing | Size / Dimension | 0.272" L x 0.303" W (6.90mm x 7.70mm) |
| Series | - | Ratings | - |
| Packaging | Tape & Reel (TR) | Other Names | 237-2086 237-2086-2 237-2086-ND CSE5-100301-REEL |
| Mounting Type | Surface Mount | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 180µH |
| Height - Seated (Max) | 0.210" (5.33mm) | Frequency Range | 250kHz Min |
| Energy Time (E.T.) | - | Detailed Description | 10A 1:30 Current Sense Transformer 250kHz Min 870 mOhm Secondary 180µH Surface Mount |
| DC Resistance (DCR) | 870 mOhm Secondary | Current Ratio | - |
| Current Rating | 10A |
