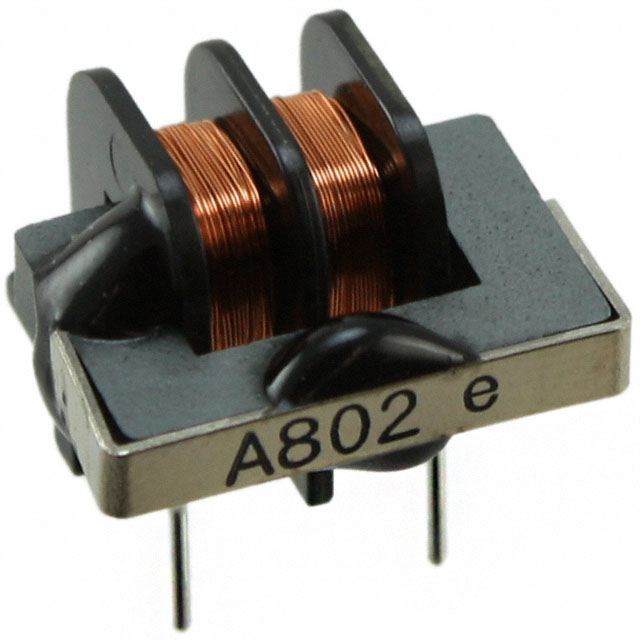

TLF9UAH802WR25K1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLF9UAH802WR25K1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLF9UAH802WR25K1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLF9UAH802WR25K1 |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 8MH 250MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.162 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLF9UAH802WR25K1 | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 8MH 250MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 141285 pcs | Data sheet | TLF9UAH802WR25K1 Spec SheetCommon Mode Choke Coils |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.669" L x 0.591" W (17.00mm x 15.00mm) |
| Series | TLF9 | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 587-2799 LM TLF 9UAH802WR25K1 |
Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 8mH @ 1kHz |
| Height (Max) | 0.472" (12.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 8mH @ 1kHz 2 Line Common Mode Choke Through Hole 250mA DCR 4 Ohm |
| DC Resistance (DCR) (Max) | 4 Ohm | Current Rating (Max) | 250mA |
| Approvals | - |
