TLF9UBH203WK1

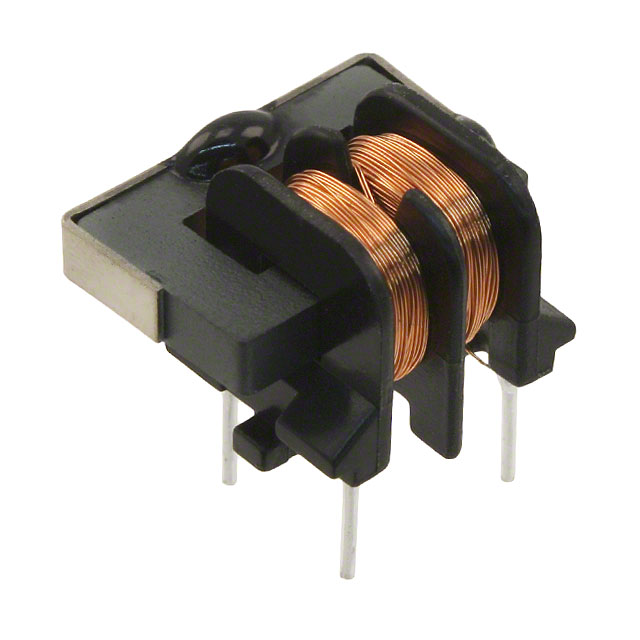

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLF9UBH203WK1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLF9UBH203WK1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLF9UBH203WK1 |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 180MA 2LN 150 KOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.161 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLF9UBH203WK1 | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 180MA 2LN 150 KOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138310 pcs | Data sheet | TLF9UBH203WK1 Spec SheetCommon Mode Choke Coils Leaded Datasheet |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.669" L x 0.591" W (17.00mm x 15.00mm) |
| Series | TLF9 | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 587-2804 LM TLF 9UBH203W K1 |
Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance @ Frequency | 150 kOhms @ 500kHz |
| Height (Max) | 0.472" (12.00mm) | Filter Type | Signal Line |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 150 kOhms @ 500kHz 180mA DCR 6.5 Ohm |
| DC Resistance (DCR) (Max) | 6.5 Ohm | Current Rating (Max) | 180mA |
| Approvals | - |
