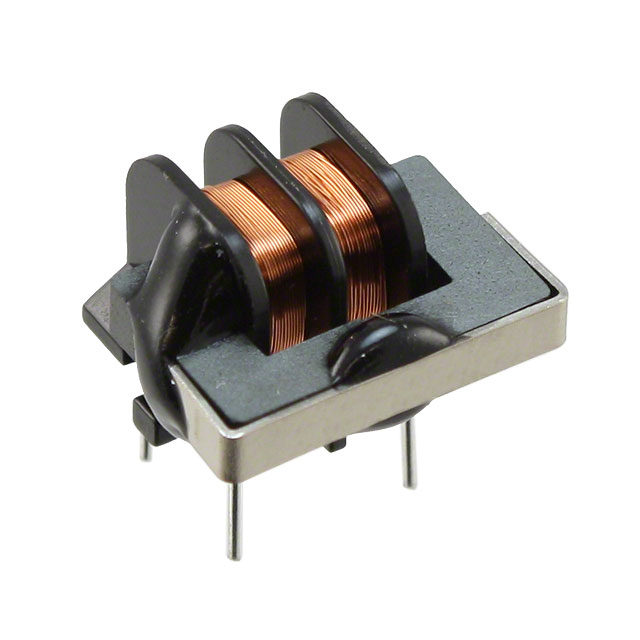

TLF9UAH103WR23K1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLF9UAH103WR23K1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLF9UAH103WR23K1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLF9UAH103WR23K1 |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 10MH 230MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.299 | $0.262 | $0.187 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.157 | $0.127 | $0.12 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLF9UAH103WR23K1 | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 10MH 230MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 187658 pcs | Data sheet | TLF9UAH103WR23K1 Spec SheetCommon Mode Choke Coils |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.669" L x 0.591" W (17.00mm x 15.00mm) |
| Series | TLF9 | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 587-2800 LM TLF 9UAH103WR23K1 |
Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 10mH @ 1kHz |
| Height (Max) | 0.472" (12.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 10mH @ 1kHz 2 Line Common Mode Choke Through Hole 230mA DCR 4.5 Ohm |
| DC Resistance (DCR) (Max) | 4.5 Ohm | Current Rating (Max) | 230mA |
| Approvals | - |
