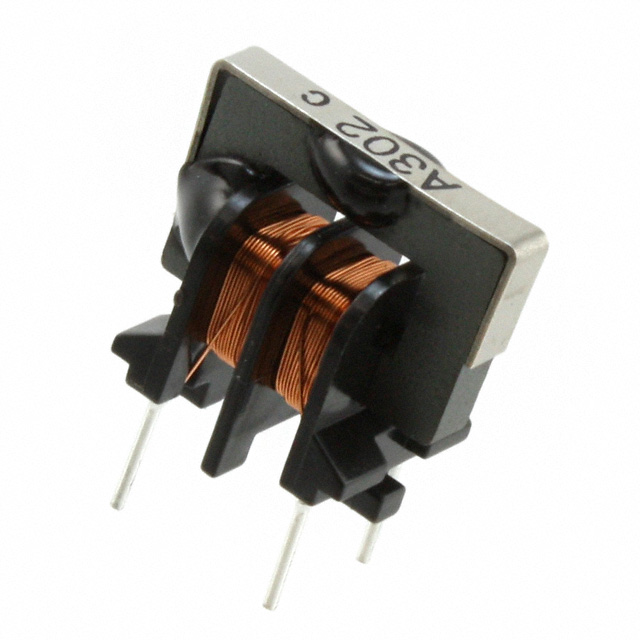

TLF9UA302WR42K1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TLF9UA302WR42K1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TLF9UA302WR42K1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TLF9UA302WR42K1 |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 3MH 420MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.157 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | TLF9UA302WR42K1 | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 3MH 420MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123502 pcs | Data sheet | TLF9UA302WR42K1 Spec SheetCommon Mode Choke Coils |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.669" L x 0.433" W (17.00mm x 11.00mm) |
| Series | TLF9 | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 587-2790 LM TLF 9UA 302WR42K1 |
Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 3mH @ 1kHz |
| Height (Max) | 0.630" (16.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 3mH @ 1kHz 2 Line Common Mode Choke Through Hole 420mA DCR 1.5 Ohm |
| DC Resistance (DCR) (Max) | 1.5 Ohm | Current Rating (Max) | 420mA |
| Approvals | - |
