CM04RC09T

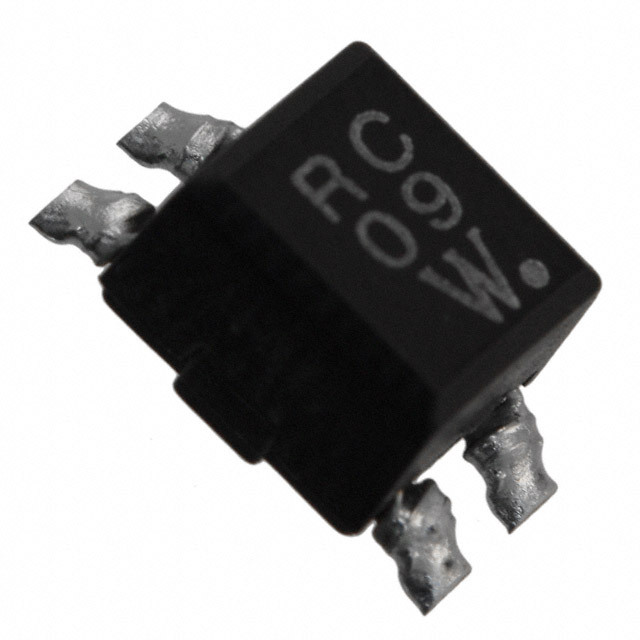

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM04RC09T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM04RC09T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM04RC09T |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | CMC 3A 2LN 270 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM04RC09T | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | CMC 3A 2LN 270 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5326 pcs | Data sheet | Common Mode Choke Coils SMDCM04RC09T Spec Sheet |
| Category | Filters | Voltage Rating - DC | 50V |
| Voltage Rating - AC | - | Size / Dimension | 0.205" L x 0.354" W (5.20mm x 9.00mm) |
| Series | CM04 | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Horizontal, 4 Gull Wing |
| Other Names | 587-2706-2 CM04RC09T-ND LR CM04RC 09 T |
Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Impedance @ Frequency | 270 Ohms @ 200MHz | Height (Max) | 0.173" (4.40mm) |
| Filter Type | Power, Signal Line | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 270 Ohms @ 200MHz 3A DCR 30 mOhm | DC Resistance (DCR) (Max) | 30 mOhm |
| Current Rating (Max) | 3A | Approvals | - |
